GKD Metal Fabrics is a supplier of interwoven metal meshes for large-scale architectural use.

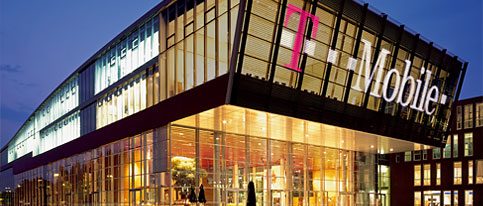

GKD Mediamesh, a metal fabric product with integral LED video system, is an excellent example of the integration of green design + digital media in architecture.  The walls can be used as architectural sun screens, cutting down on the solar heat load entering a building, while simultaneously retaining the views from inside the building and acting as a video screen from the outside.

medienfassade_tmobile_teaser_01

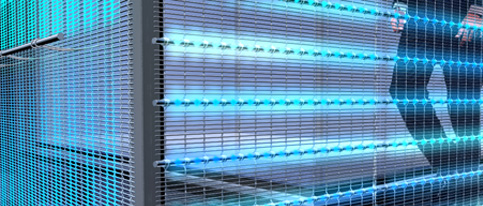

Woven metal fabrics offer a wonderful visual inversion: when the primary illumination is from the viewer’s side, the surface appears solid.  When the primary illumination is on an object or wall surface behind the metal fabric surface, the fabric appears highly transparent (it can almost completely disappear when viewed from a distance).

medienfassaden2006_teaser_01

As such, if a direct-view lighting product is integrated into the weave of the mesh, it can “magically” appear to dance across the transparent surface (because it will be visually brighter then the surface behind the mesh).

1da8fc194b

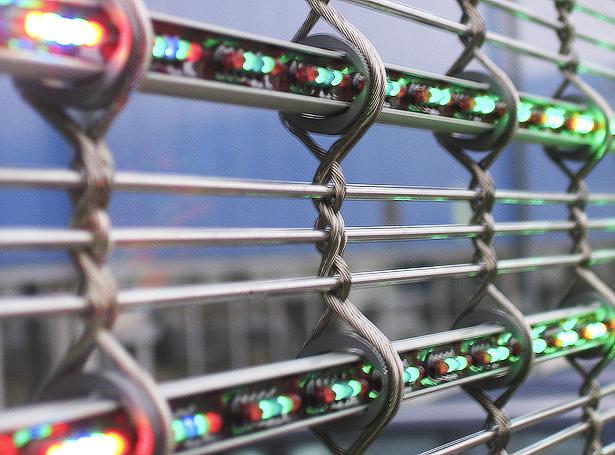

GKD has creatively exploited this effect with the Mediamesh product, which includes an integrated direct view LED display system woven right into their products.

MediaMeshProduct

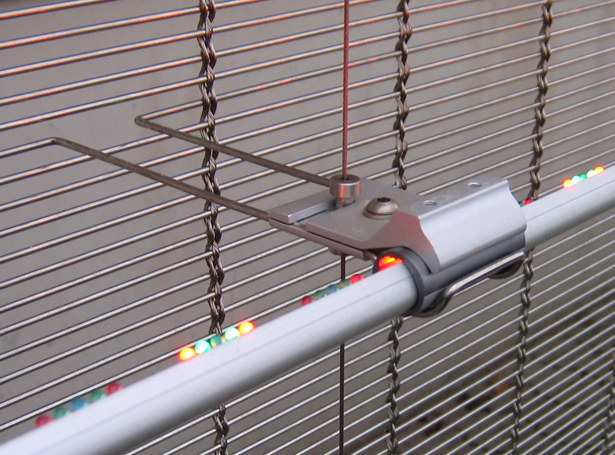

They’ve also created a variant of the concept called “Illumesh“, with the LED bars mounted proud of the metal mesh on outriggers, illuminating the front side of the mesh.

illumesh

So…when are they integrating solar cells into these systems?

ec3746b5ca

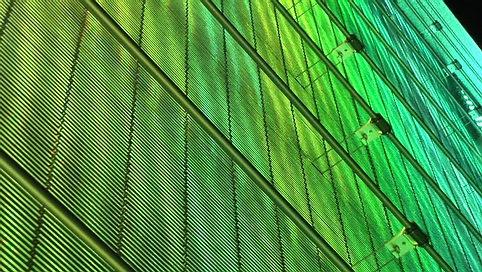

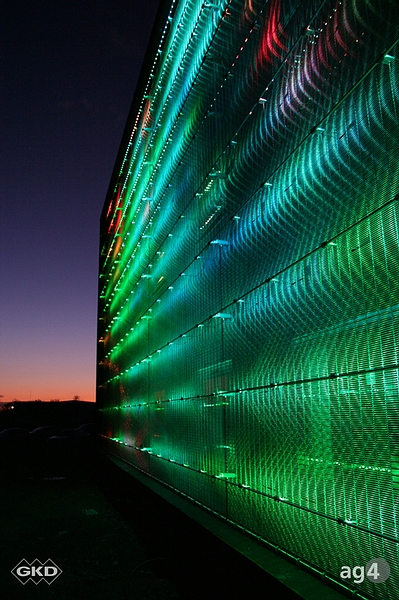

The Illumesh variant produces softer, more volumetric surfaces then the precision seen in the direct view Mediamesh product.

07a0d5c4ef

One thing that we haven’t confirmed yet is the infrastructure requirements behind these walls.  Surely, there is a large complement of power supplies and data storage/distribution gear that needs to find a home close to these walls, plus the always thorny issue of addressing and pixel mapping.

Design in conjungtion with ag4|media facade (we’ll be covering their other projects in a seperate post).
